Robotics & Automation
CNC Prototyping Services
XHYE Manufacturing delivers 5-axis CNC machining, rapid prototyping and production runs for robotics teams, automation integrators and hardware startups — with tight tolerances down to ±0.01 mm, 3-day turnaround, and iterative design support backed by ISO 9001 quality systems.
Custom Robot Parts,
From CAD File to Working Prototype
From one-off prototypes to production runs — robot joints, actuator housings, end effectors, sensor mounts, linear axis brackets and automation frames. Our DFM engineers review every CAD file within 24 hours — suggesting design improvements for faster machining and better performance.
- STP / STEP / IGES / SolidWorks / AutoCAD drawing formats accepted
- Prototypes delivered in 3–7 days; production runs scheduled to your cadence
- First Article Inspection (FAI), Material Certificates (COC) and dimensional reports included
- Design iteration support: same-day quote revisions when you update your CAD file
- Dedicated fast-track lane for urgent builds, design iterations and ECN changes
Why Robotics Teams Choose XHYE
Hardware teams move fast — your next prototype depends on fast, reliable machining. We build speed, precision and design feedback into every order.
3-Day Turnaround
Standard prototypes ship in 3–7 business days. Rush lane compresses simple parts to 48–72 hours. No waiting weeks for your next iteration.
5-Axis & Swiss-Type
5-axis centers handle complex joint housings and curved surfaces; Swiss-type lathes produce precision shafts and small actuator components in one setup.
Design Iteration Support
Quote within 24 hours with DFM feedback. Re-order the same part with an updated CAD file in minutes. Your parts library saved in our system.
98.8% On-Time Delivery
On-time delivery rate above 98.8% (rolling 3-year statistic). Rush orders responded within 24 hours.
Our Unique Advantages
More than a machine shop — your engineering partner in the supply chain.
DFM Engineering Support
Quotations include manufacturability analysis: wall thickness, tool reach, fixturing recommendations. Catch issues before production.
Real-Time Project Tracking
Track work order status, inspection reports and shipping via dedicated customer portal. Automated notifications at key milestones.
One-Stop Finishing
Anodizing, bead blasting, powder coating and engraving coordinated — parts arrive ready to assemble, no extra vendors to manage.
Fast DFM Feedback
Our engineers review every drawing before machining — flagging tolerance issues, undercuts and cost-saving opportunities within 24 hours.
Flexible Production Capacity
From 1 prototype to high-volume production on shared lines. Modular tooling avoids the "small batch = expensive" trap.
IP & Design Protection
Factory-wide NDA system. Drawings stored on isolated servers; departing employee access revoked immediately; IP audits supported.
5-Stage Quality Control
View Full Quality ProcessEvery prototype passes through a documented inspection chain — you get what you designed.

Incoming Inspection
Material verified against Mill Certificate; lot number logged and traced.

First Article (FAI)
Full-dimensional CMM inspection of first piece; inspection report included with every shipment.

In-Process Patrol
In-process dimensional checks during machining; critical features verified before shipment.

Final Inspection
CMM full-dimensional check + surface finish verification per drawing.

Outgoing Audit
Documentation review, packaging verification and traceability check.
Robotics & Automation Manufacturing Processes
From additive manufacturing to precision machining, forming and molding — each process selected for fast iteration, functional prototypes and bridge production.
3D Printing
Print rapid functional prototypes in engineering materials (ABS, PC, nylon) — ideal for form-and-fit testing, complex geometries and topology-optimized robot parts that CNC cannot achieve.
CNC Machining
3-axis, 5-axis and Swiss-type centers machine aluminum, steel and engineering plastics from solid billets — ideal for functional robot joints, actuator housings and precision shafts.
Sheet Metal Fabrication
Laser cut and bent sheet metal produces robot brackets, machine guards, equipment enclosures and automation frames — strong, lightweight and ready to assemble.
Injection Molding
Silicone vacuum casting and urethane casting replicate injection-molded parts in low volumes — ideal for enclosure housings and ergonomic grips before committing to hard tooling.
Robotics-Grade Materials
Common robotics materials stocked in-house, every batch supplied with Mill Certificates. Special materials available on request.
| Category | Common Grades | Typical Applications | Process Notes |
|---|---|---|---|
| Aluminum Structural Default |

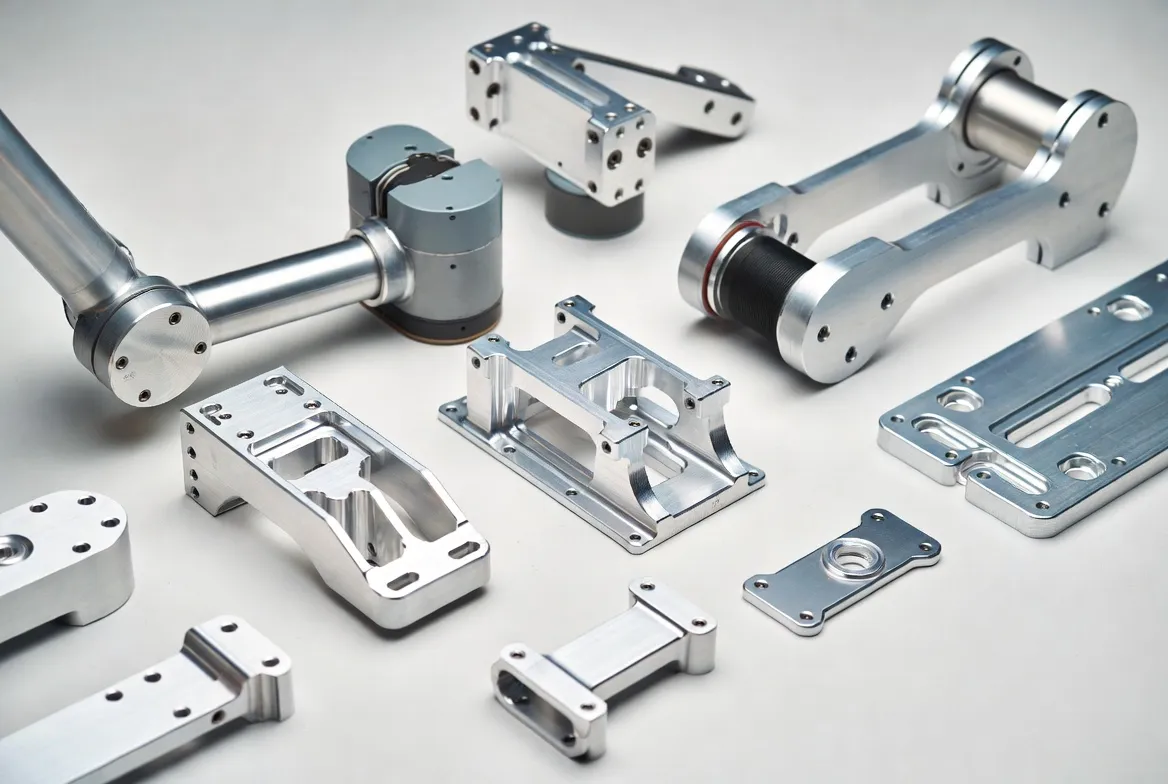

6061-T6, 7075-T6, 5052, Al6061 | Robot joints, actuator housings, brackets, frames, camera mounts, heat sinks | High-speed machining, anodizable, light and rigid — the robotics default |

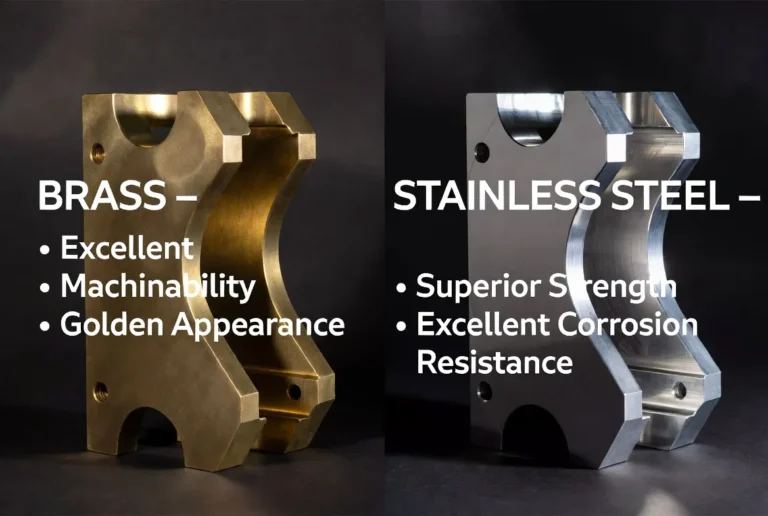

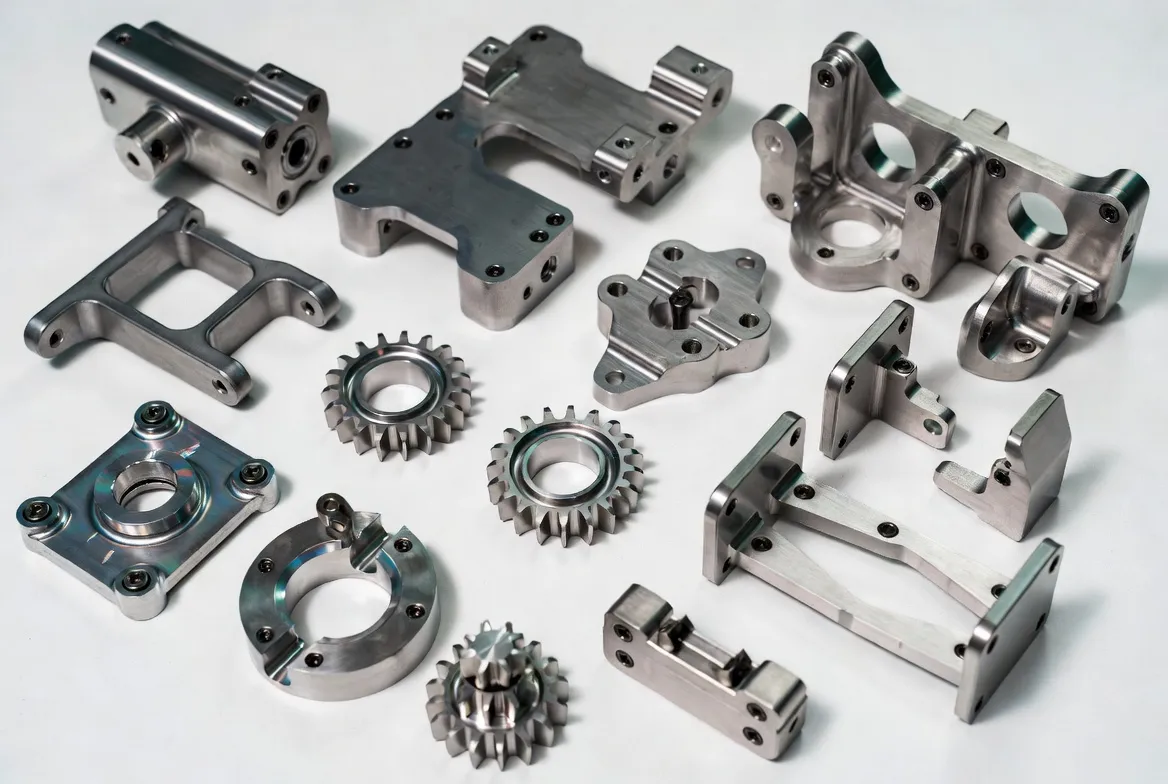

| Stainless Steel Strength / Wear |

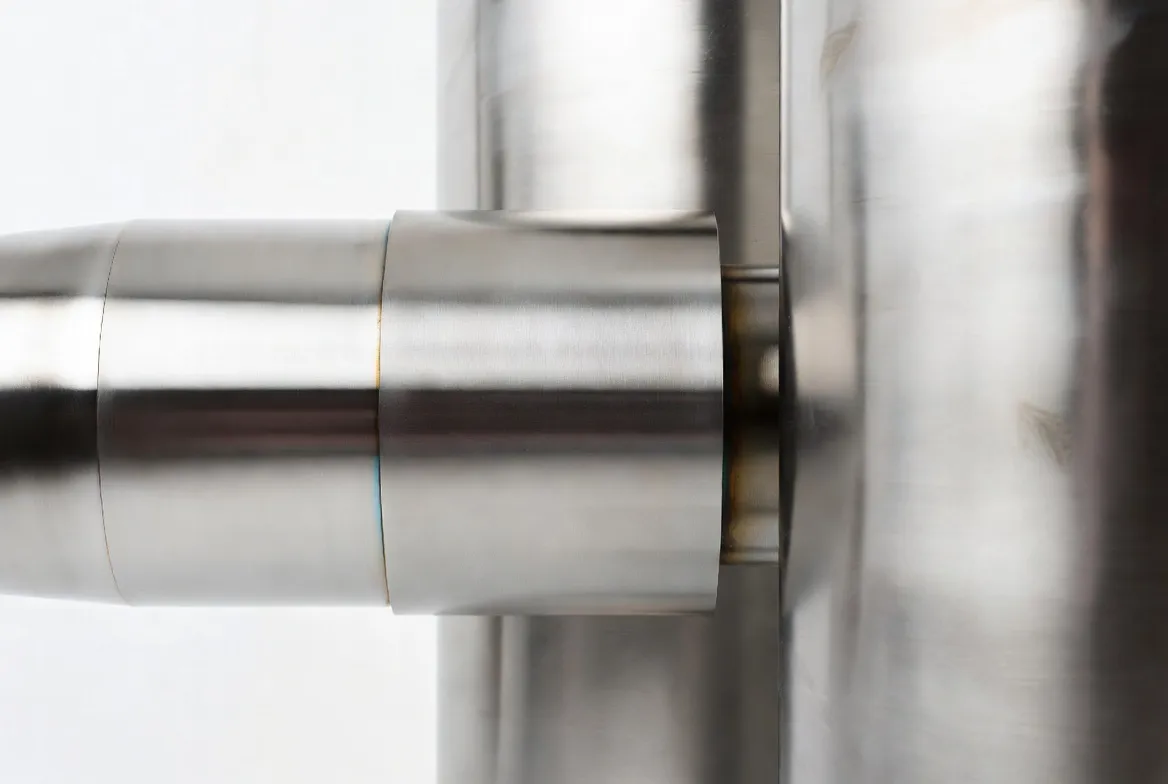

304, 316L, 17-4PH, 420 | Shafts, fasteners, wear parts, corrosion-resistant components, sensor mounts | Good strength and corrosion resistance, passivation available |
| Composites Lightweight / Rigid |

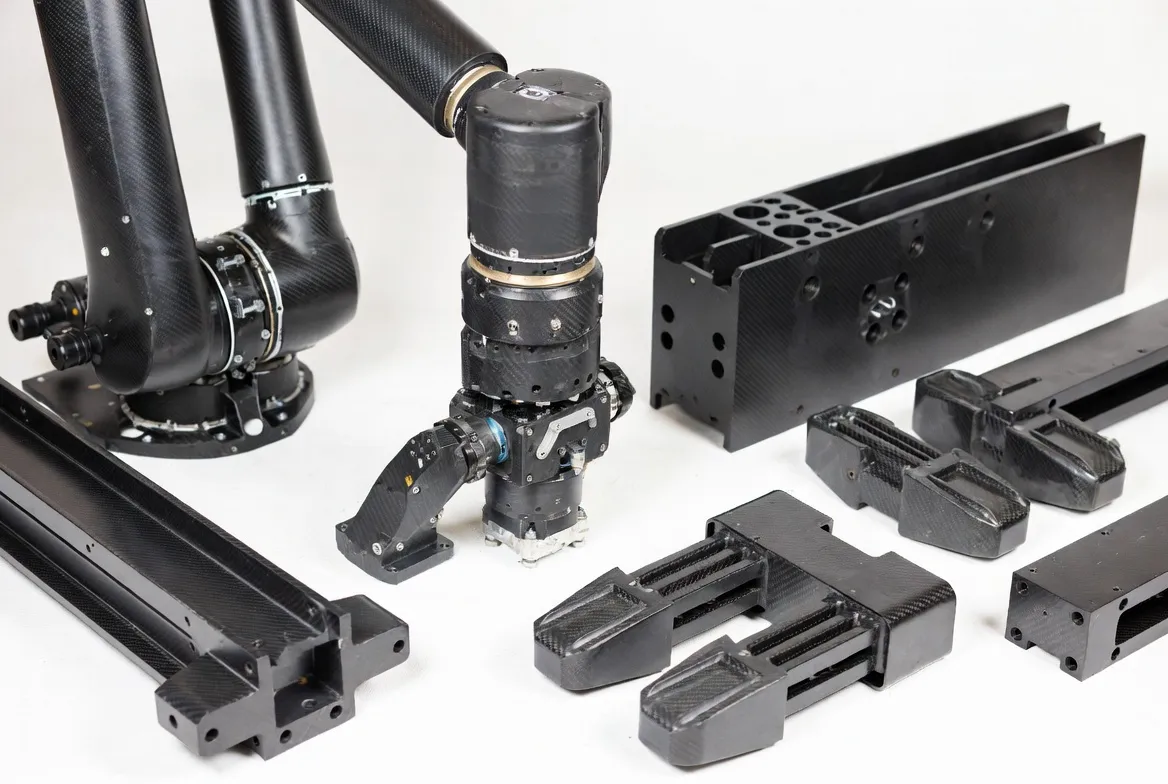

Carbon fiber sheet, G10/FR4, fiberglass plate | Lightweight arms, camera gimbals, PCB mounting plates, insulating spacers | Precision laser cutting available, high stiffness-to-weight ratio |

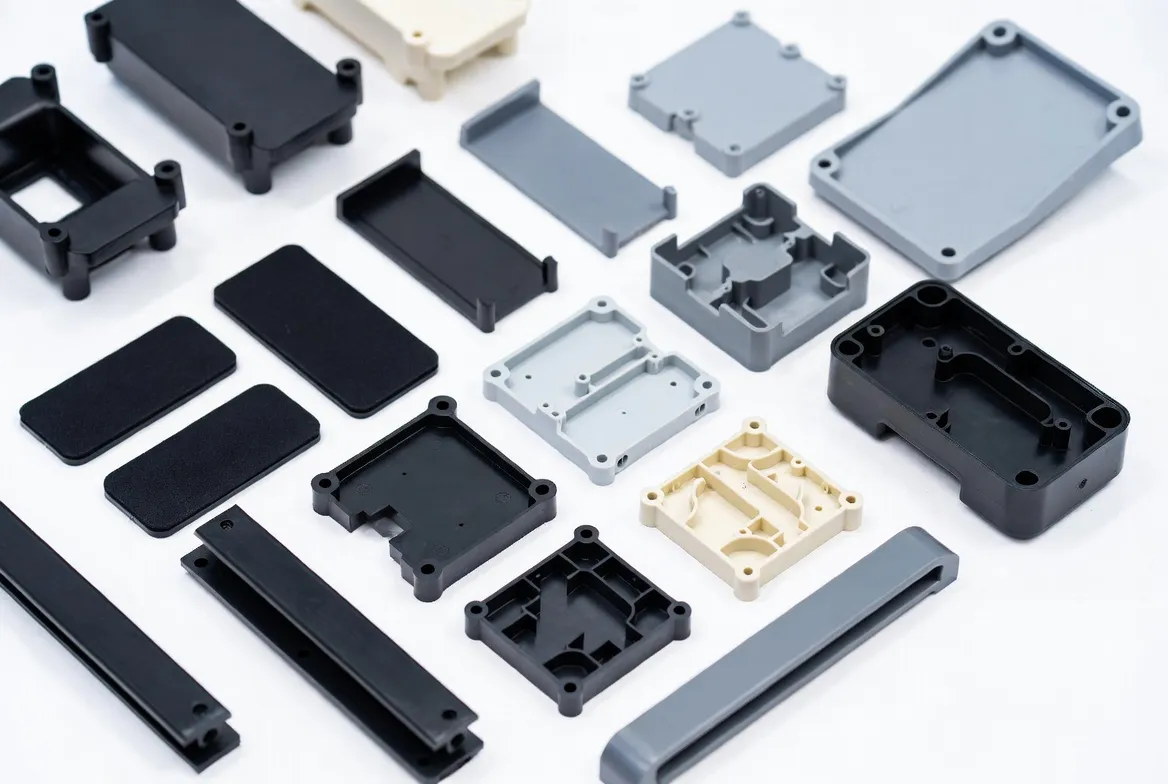

| Engineering Plastics Wear / Lubrication |
Delrin (POM), PEEK, PTFE, UHMW, nylon | Bushings, wear pads, gears, insulators, structural plastic parts | Self-lubricating, low-friction, excellent machinability |

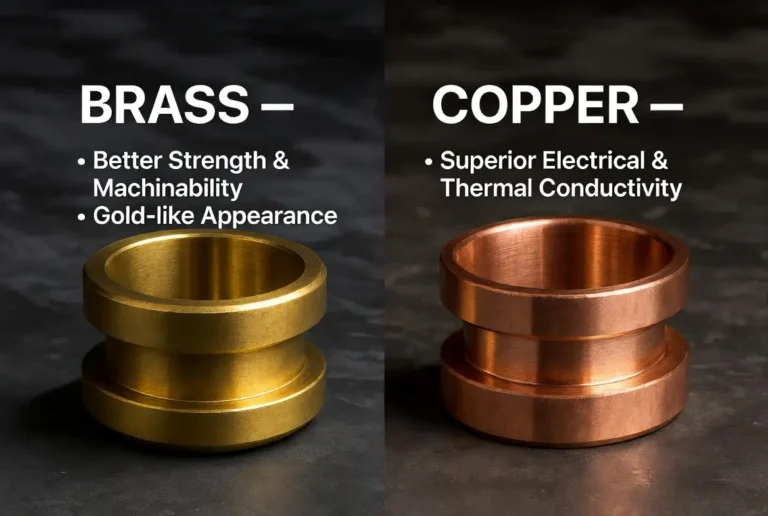

| Other Metals Conductive / Lightweight |

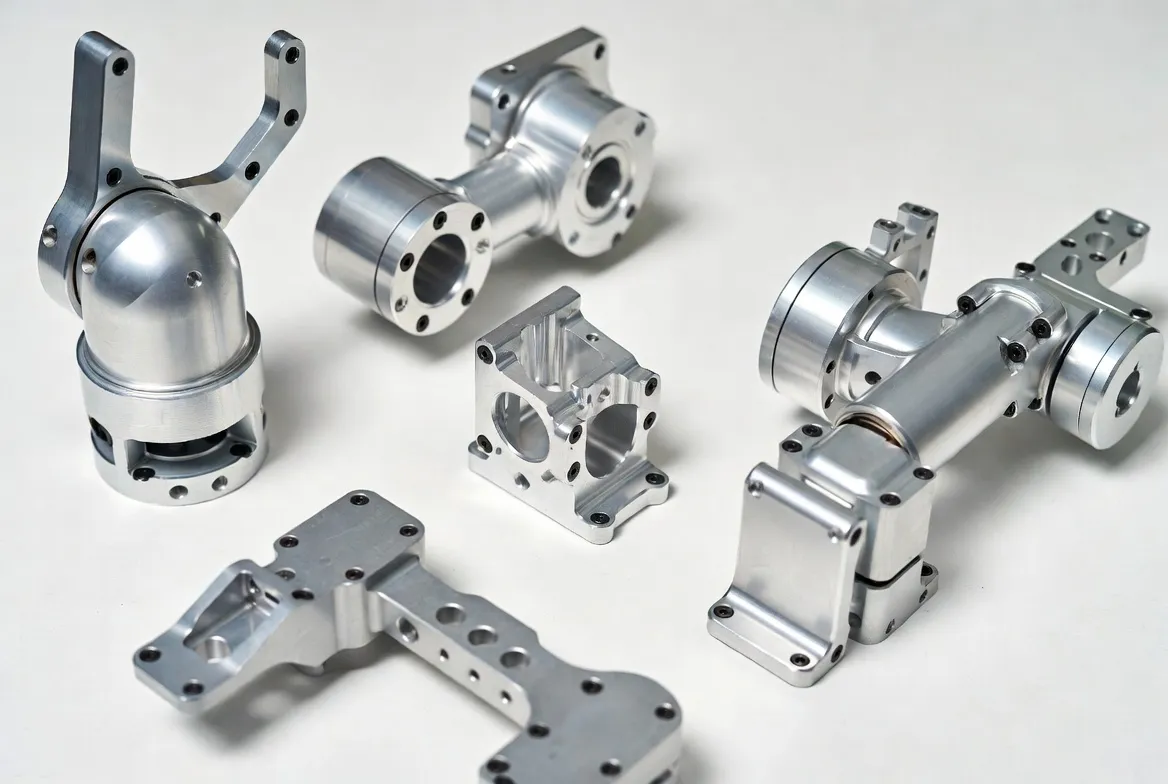

Brass, copper, magnesium AZ31 | Electrical contacts, heat sink inserts, lightweight structural parts | Brass: precision machining; copper: thermal conductivity; Mg: ultra-light |
Surface Treatment Options
All surface treatments performed by certified subcontractors. We coordinate the process chain and perform final inspection.

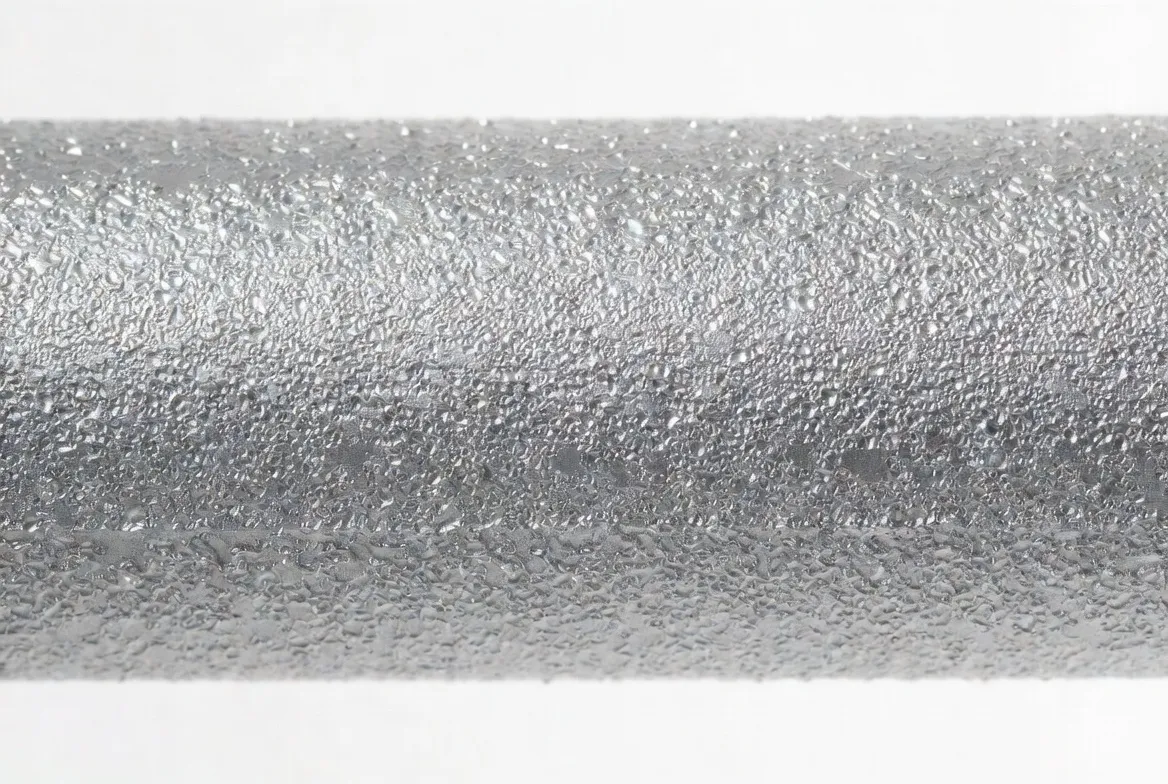

Bead Blasting
Uniform matte finish for aluminum and steel parts. Improves surface appearance and hides machining marks.

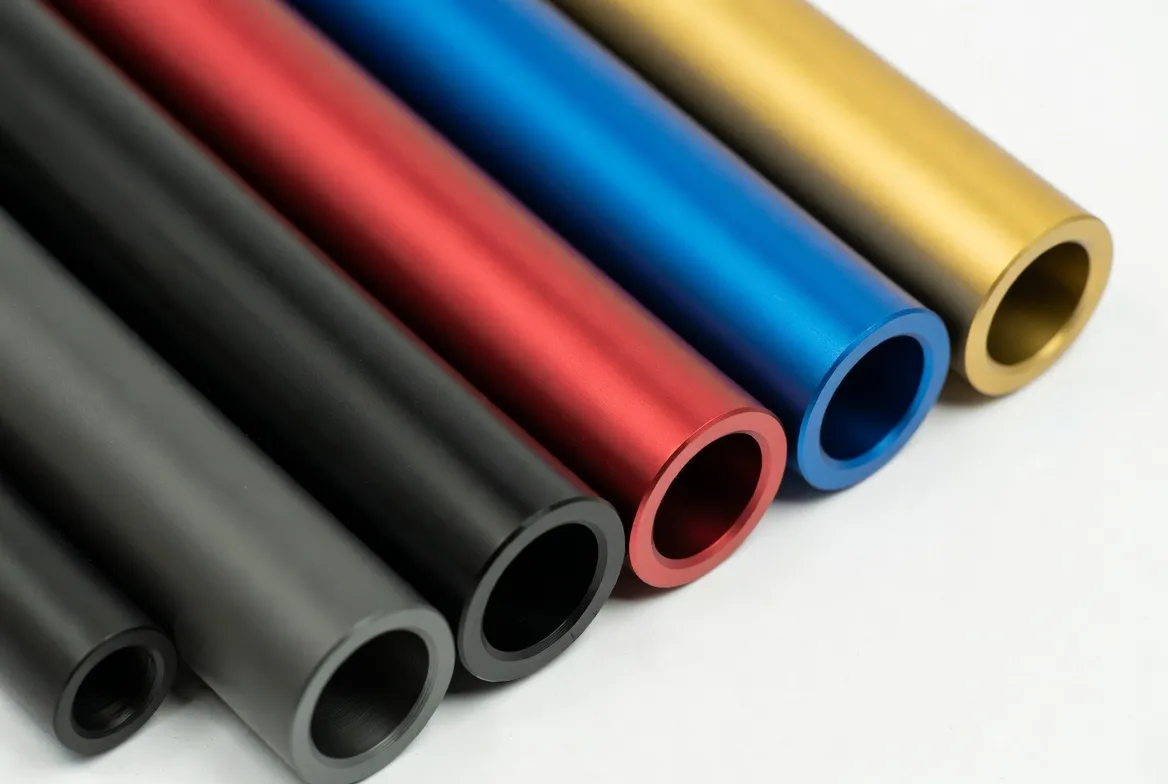

Custom FinishAnodizing (Type II)
Corrosion protection and decorative finish for aluminum. Clear, black or custom colors available.
MIL-A-8625 Type IIBlack Oxide
Black finish for steel and stainless parts. Mild corrosion resistance, decorative appearance.

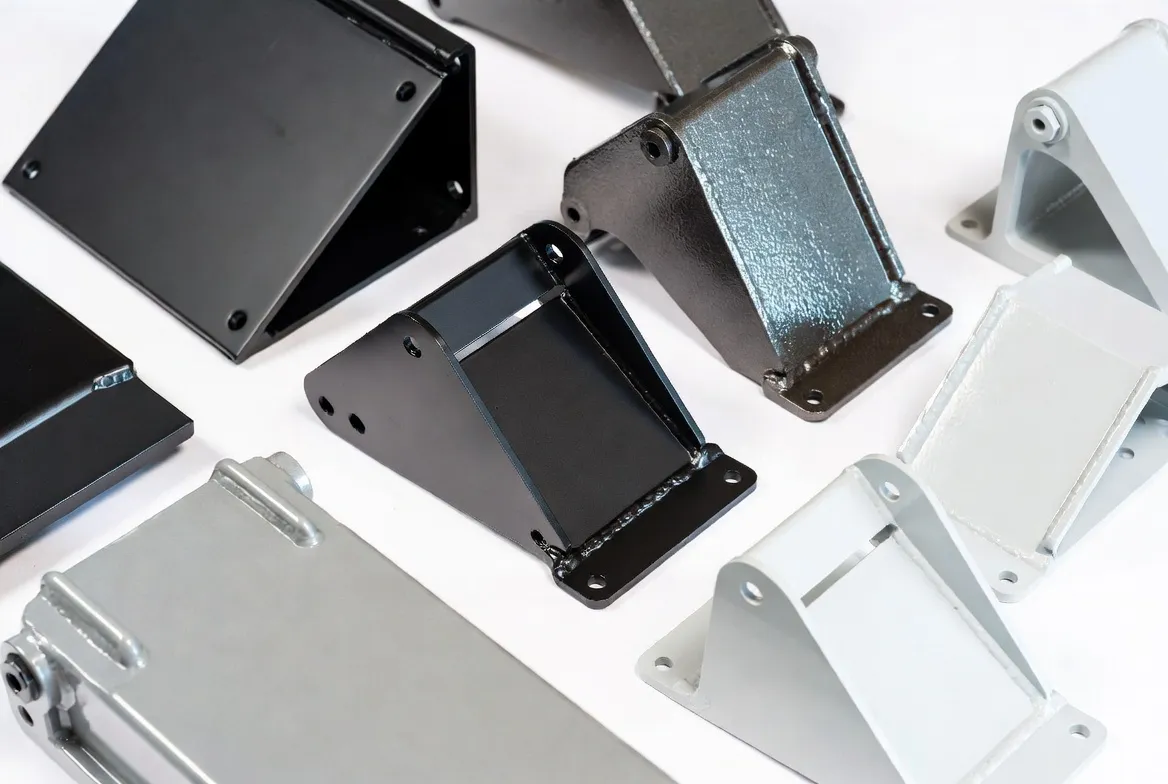

MIL-DTL-13924Powder Coating
Durable, chip-resistant finish for frames, brackets and enclosures. Wide color selection.
Custom ColorLaser Engraving
Part numbers, serial codes and logos directly on parts. Permanent, no extra cost for small runs.

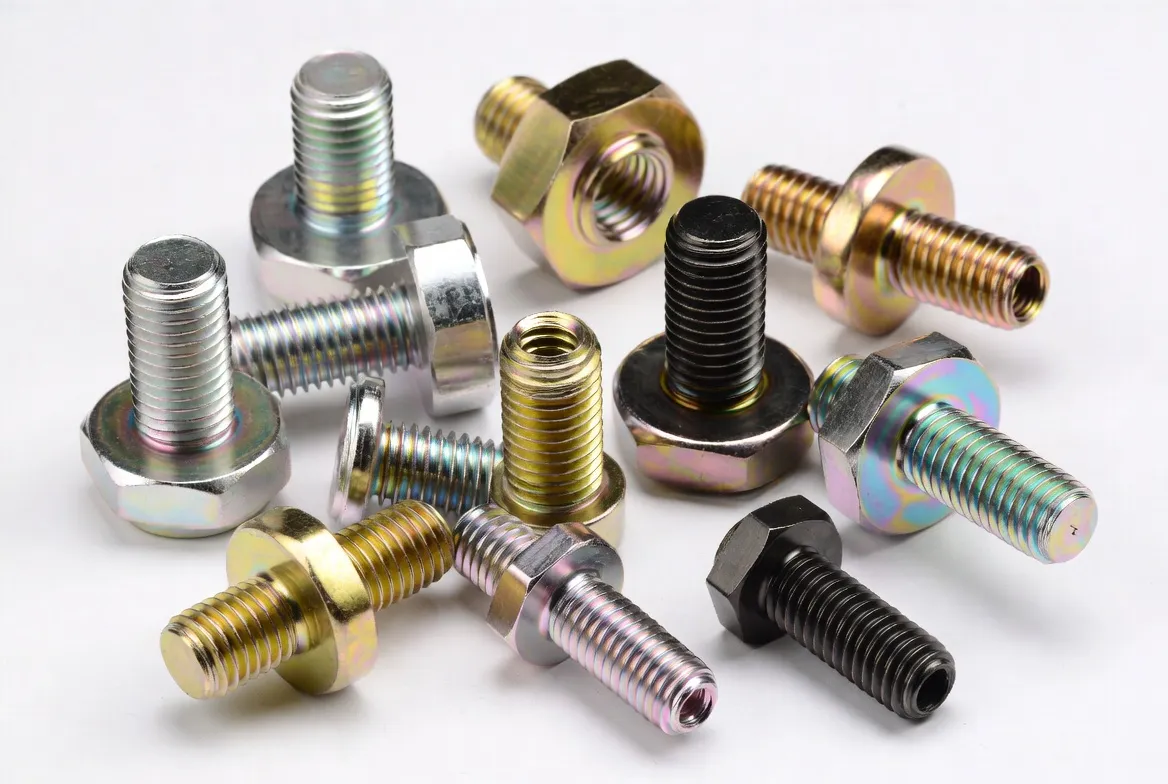

Custom MarkingZinc Plating
Corrosion protection for steel fasteners and brackets. Clear or yellow zinc finish available.
ASTM B633Dry Film Lubricant
PTFE / MoS₂ coatings for gears, sliding surfaces and bearing seats. Reduces friction and noise.
MIL-PRF-46010Tapping & Threading
Standard and custom thread forms. Thread inserts (helicoil) available for soft materials like aluminum.
UNC / UNF / MetricProject Gallery
Representative recently delivered parts (published with customer authorization). Additional cases available under NDA.

Titanium Fastener & Bushing Set

Hydraulic System Fitting Assembly

Small Engine Integral Turbine Disk

Compressor Impeller — 5-Axis Finish

Gear & Impeller Full-Dimensional Check

Airframe Load-Bearing Housing
What Our Clients Say
Long-term feedback from robotics startups, automation integrators and hardware teams.
"We iterate fast — usually 5–8 design revisions per robot joint. XHYE turns around each revision in 3 days with DFM feedback that catches issues before machining. That speed alone cut our development cycle in half."
"We needed a gripper housing for a demo in 5 days. They machined it over a weekend, anodized it black, and shipped it Monday morning. Demo went perfectly. No other shop would even try."
"Three years of working together. They know our standard parts library, our tolerances, and our preferred materials. Reordering a revised bracket takes one message."
Robot Harmonic Drive Joint:
From 7-Piece Stack-up to a Single 5-Axis Housing
The original joint design stacked 7 separate machined and purchased components — high alignment error, long assembly time, and multiple seal points. We switched to a single 6061-T6 billet, machined the bearing bores and gear interface in one 5-axis setup, reducing concentricity error by 80% and eliminating all shimming.
Design iterated 6 times over 8 weeks, then moved to bridge production of 50 units/month with zero alignment failures.
Discuss Your Similar ProjectFrequently Asked Questions
From a single R&D prototype to high-volume production runs. Small batches run on our flexible line; larger orders trigger dedicated tooling and cycle-time optimization with tiered pricing.
Standard prototypes: 3–7 business days. Complex 5-axis parts: 7–12 days. Rush lane can compress simple parts to 48–72 hours. Express shipping available worldwide.
Yes. Every shipment includes a simple inspection report and raw material Mill Certificate. CMM full-dimensional reports available on request for critical features.
All customer data enters quotation only after an NDA is signed. Drawings stored on isolated project servers; departing employee access revoked immediately; projects destroyed or returned per customer request.
No hard MOQ. Single-piece prototypes are accepted, though unit price covers programming, fixturing and inspection costs. Larger quantities yield better per-unit pricing.
Critical features down to ±0.01 mm on 5-axis machined parts, ±0.003 mm on Swiss-type micro components, and ±0.002 mm on precision-ground surfaces. Tolerance capability is feature- and material-dependent — confirmed at DFM stage.
