Medical-Device Grade
Precision CNC Machining Services
XHYE Manufacturing delivers 5-axis CNC machining, rapid prototyping and production runs for medical device OEMs — with critical feature tolerances down to ±0.005 mm, backed by ISO 13485 and ISO 9001 certified quality systems.
Custom Medical Device Parts,
From Drawing to FDA-Ready Production
From one-off prototypes to production runs — surgical instruments, implantable components, diagnostic device housings and robotic surgery parts. Our DFM engineers review every drawing at quotation stage to optimize manufacturability, biocompatibility and regulatory readiness.
- STP / STEP / IGES / SolidWorks / AutoCAD drawing formats accepted
- Prototypes delivered in 3–7 days; production runs scheduled to your cadence
- First Article Inspection (FAI), Material Certificates (COC) and dimensional reports included
- ISO 13485 design history file (DHF) and technical documentation packages supported
- Dedicated fast-track lane for low-volume, clinical-trial and ECN orders
Why Medical Device OEMs Choose XHYE
Medical device components directly impact patient safety. We build certification, precision, traceability and regulatory readiness into every work order.
ISO 13485 Certified
Medical device QMS compliant with ISO 13485 design, production and traceability requirements. FDA 21 CFR Part 820 alignment.
Implant-Grade Precision
Swiss-type and 5-axis centers handle micro surgical components and implant geometries in a single setup — Ra 0.1 µm surface finish achievable.
Lot & UDI Traceability
Every part tracked from raw material lot number through machining, surface treatment and final inspection. UDI-ready, audit-traceable.
98.8% On-Time Delivery
On-time delivery rate above 98.8% (rolling 3-year statistic). Rush orders responded within 24 hours.
Our Unique Advantages
More than a machine shop — your engineering partner in the supply chain.
DFM Engineering Support
Quotations include manufacturability analysis: wall thickness, tool reach, fixturing recommendations. Catch issues before production.
Real-Time Project Tracking
Track work order status, inspection reports and shipping via dedicated customer portal. Automated notifications at key milestones.
One-Stop Special Processes
Passivation, electropolishing, parylene coating and sterilization validation coordinated with certified subcontractors — all final-inspected by us.
CMM & Blue-Light Inspection
Full-dimensional CMM, blue-light scanning and optical microscopy for implant surfaces. PDF inspection reports delivered with every shipment.
Flexible Production Capacity
From 1 prototype to high-volume production on shared lines. Modular tooling avoids the "small batch = expensive" trap.
IP & Design Protection
Factory-wide NDA system. Drawings stored on isolated servers; departing employee access revoked immediately; IP audits supported.
5-Stage Quality Control
View Full Quality ProcessEvery part passes through a documented inspection chain aligned with ISO 13485 — no shortcuts, no exceptions.

Incoming Inspection
Biocompatible raw material verified against Mill Certificate; lot and heat number logged per ISO 13485.

First Article (FAI)
Full-dimensional CMM inspection of first piece; DHF record opened before production release.

In-Process Patrol
Periodic sampling during machining; SPC charts for critical features.

Final Inspection
CMM full-dimensional check + surface finish verification per drawing.

Outgoing Audit
Documentation review, packaging verification and traceability check.
Medical Device Manufacturing Processes
From additive manufacturing to precision machining, forming and molding — each process validated for biocompatibility, sterilization and regulatory readiness.
3D Printing
Build patient-specific implants, surgical guides and complex lattice structures directly from CT/MRI data — ideal for patient-matched devices that subtractive methods cannot achieve.
CNC Machining
3-axis and 5-axis CNC milling and Swiss-type turning centers machine implant-grade titanium, stainless and PEEK to produce high-precision surgical and implantable components.
Sheet Metal Fabrication
Laser cutting, CNC bending and welding produce thin-gauge metal housings, trays and brackets — ideal for diagnostic equipment carts, sterilization trays and enclosure prototypes.
Injection Molding
Medical-grade polymers (PEEK, PC, ABS) via soft tooling or vacuum casting replicate injection-molded appearance in low volumes — ideal for clinical-trial enclosures and ergonomic device housings.
Medical-Grade Materials
Medical-grade materials stocked in-house, every batch supplied with original Mill Certificates, biocompatibility data and lot-number traceability.
| Category | Common Grades | Typical Applications | Process Notes |
|---|---|---|---|

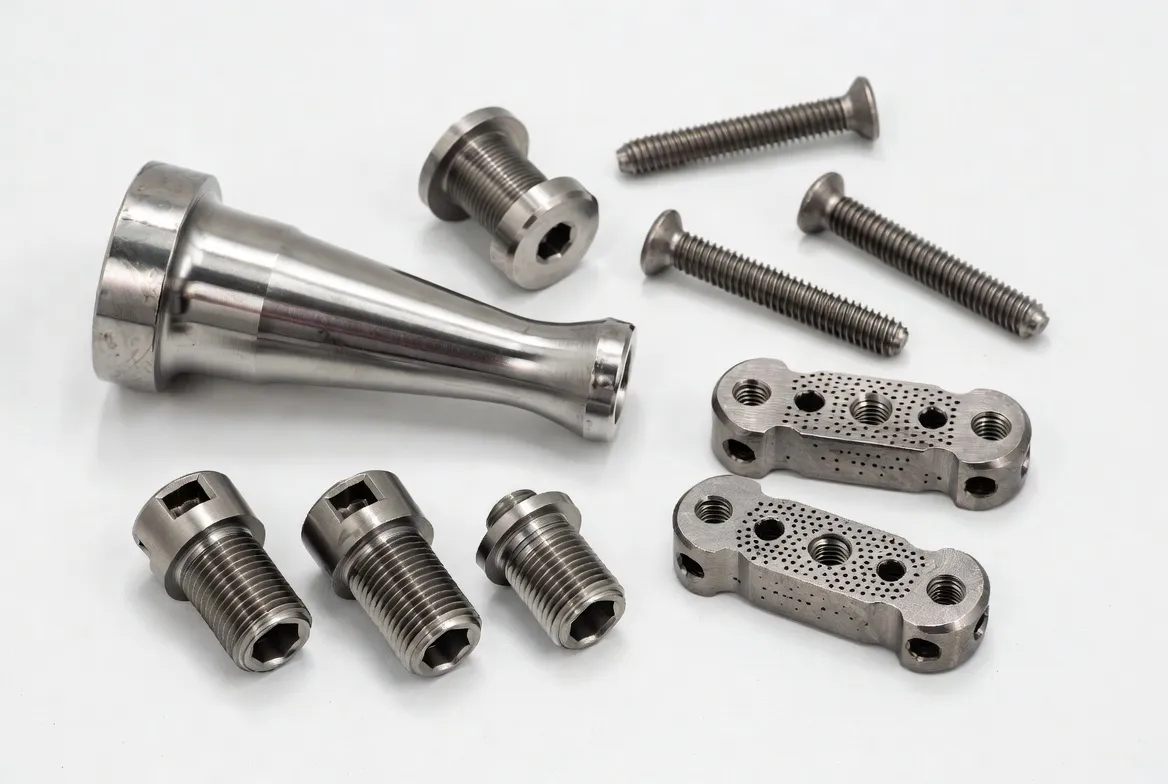

| Titanium Titanium Alloys |
Ti-6Al-4V ELI (Gr.23), Ti-6Al-4V (Gr.5), Ti-6Al-7Nb | Orthopedic implants, spinal cages, surgical instruments, dental abutments | Biocompatible grade, low cutting speed, high-pressure coolant, cleanroom packaging |

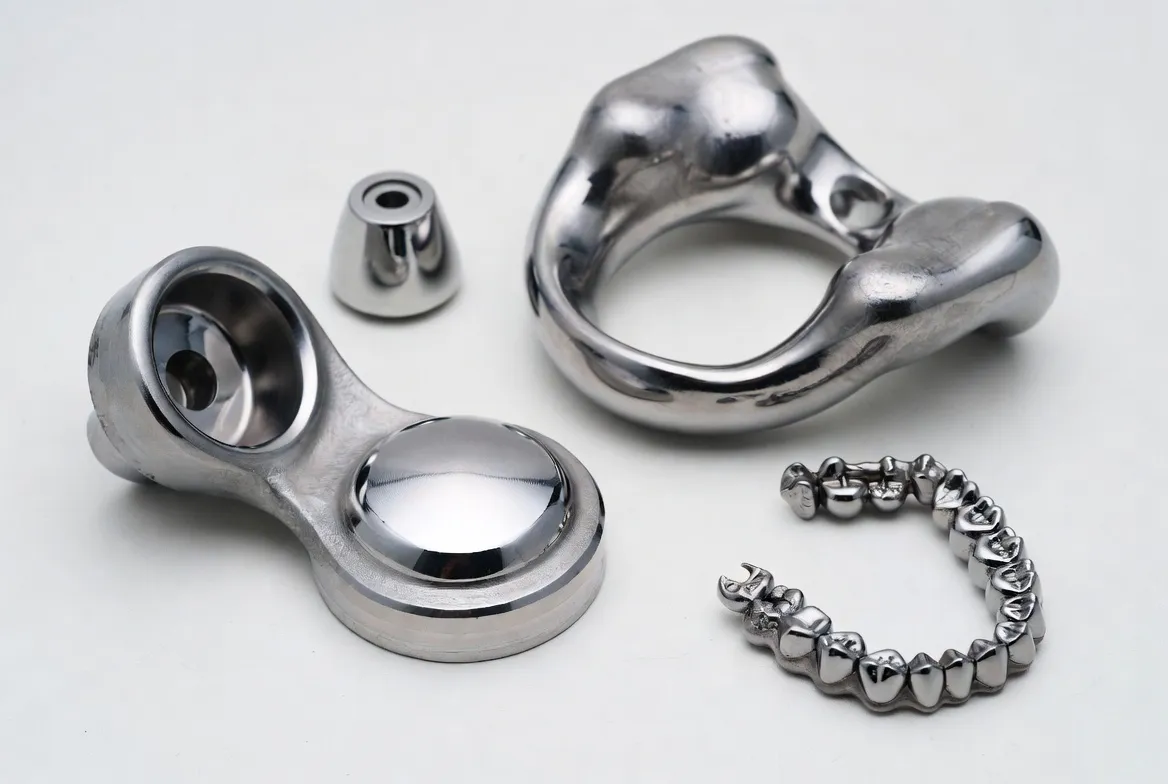

| Cobalt-Chrome Implant Alloy |
CoCrMo (ASTM F75), CoCrWNi, MP35N | Hip/knee implants, dental prosthetics, surgical blades, wire-forming components | Work-hardening alloys, sharp tooling, excellent surface finish required |

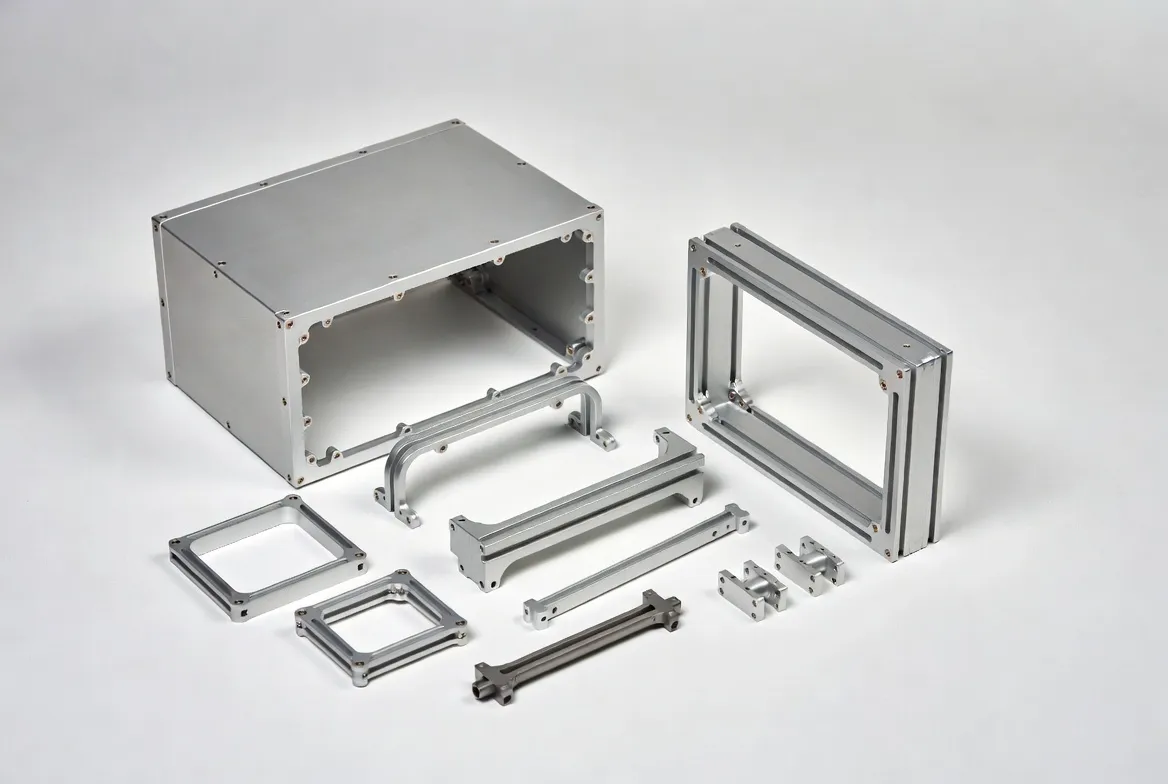

| Aluminum Device Housing |
6061-T6, 7075-T6, AL6061 anodizable | Diagnostic equipment housings, sterilization trays, device chassis, brackets | High-speed milling, anodization-ready, cleanroom packaging |

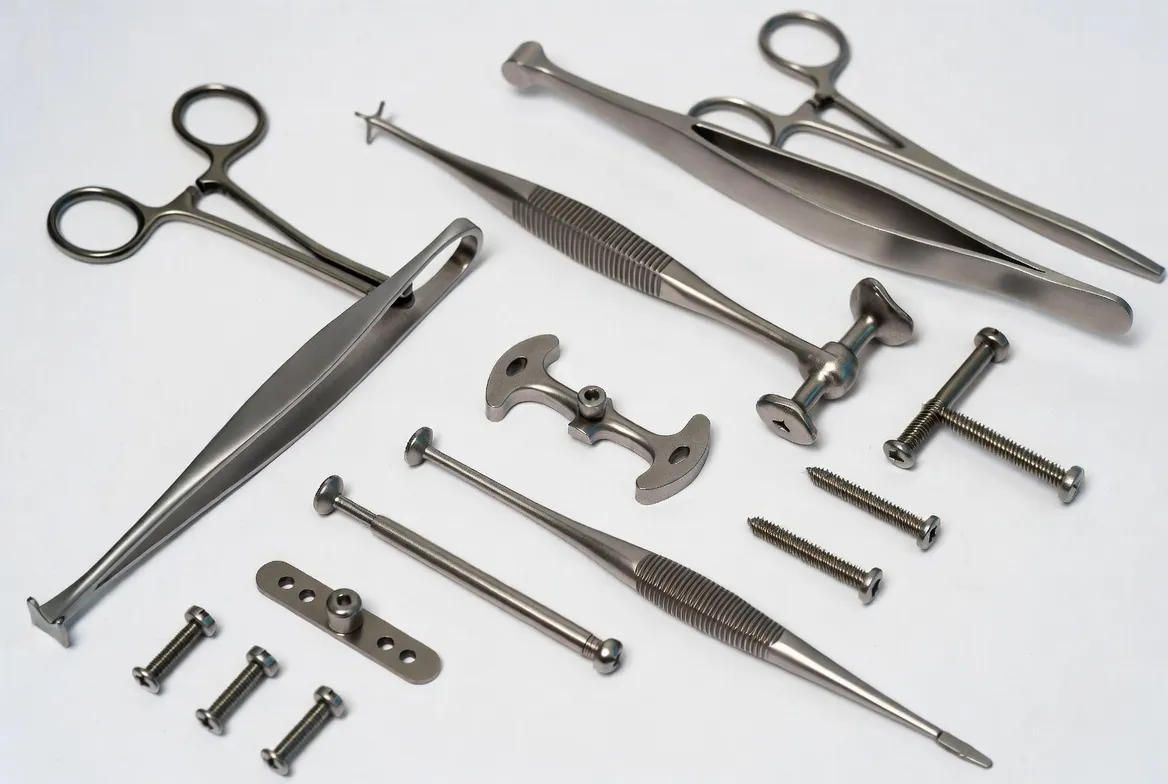

| Stainless Steel Stainless |
316LVM (VM), 316L, 17-4PH, 440C, 420 | Surgical instruments, implantable components, valves, fasteners, arthroscopic tools | Electropolish-ready, burr control, demagnetization, passivation per ASTM A967 |

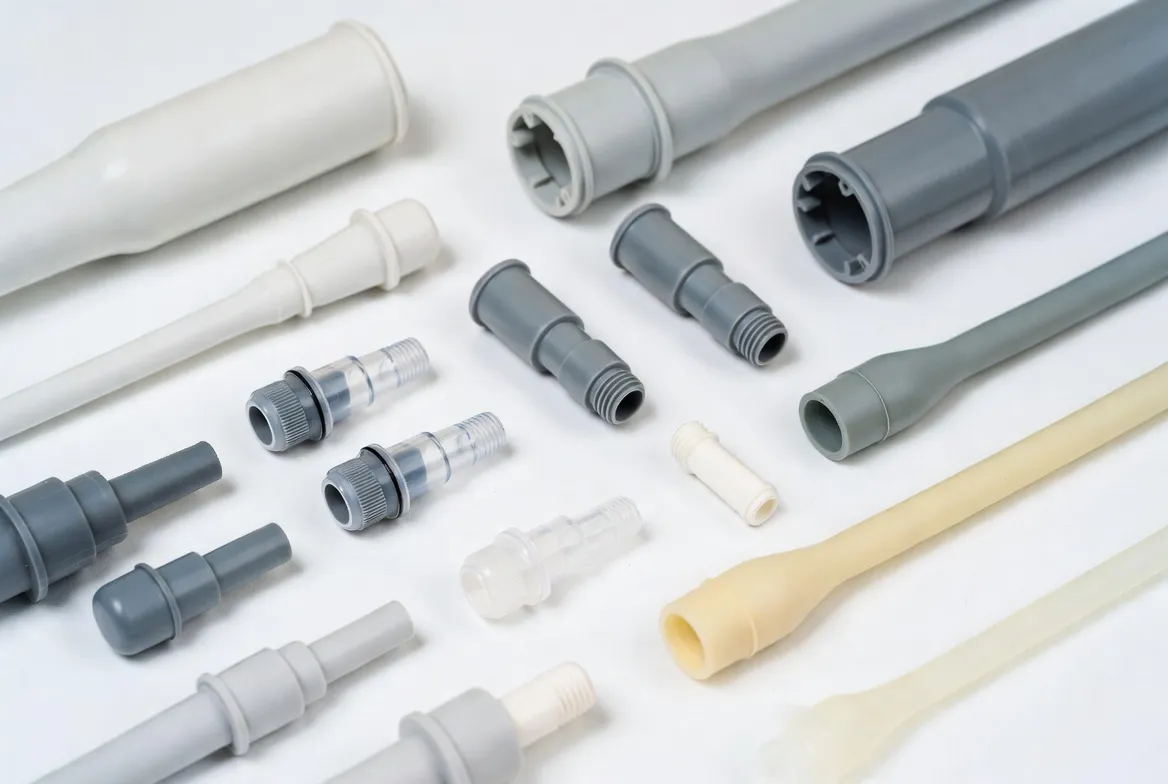

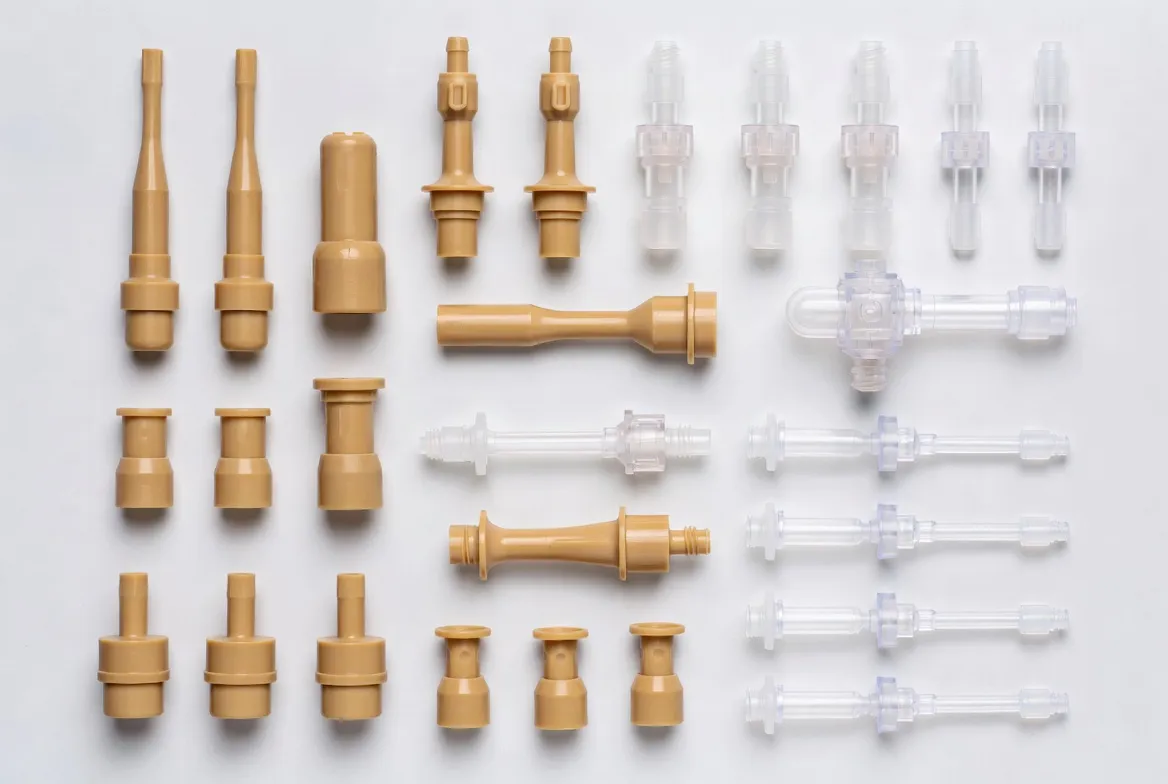

| Engineering Plastics Polymers |
PEEK (medical grade), PEKK, Ultem (PEI), PPSU, Acetal | Spinal implants, surgical handles, device housings, sterilization-resistant components | Medical-grade resin, low-stress fixturing, gamma/ETO sterilization compatible |
Surface Treatment Options
All surface treatments performed by certified subcontractors. We coordinate the process chain and perform final inspection.
Electropolishing
Passivation and surface improvement for stainless steel surgical and implant parts. Ra < 0.2 µm, bacteria-resistant.
ASTM B912Titanium Anodizing
Corrosion protection and color-coded marking for Ti implants. Thin film, no dimensional impact.
ASTM F1258Stainless Passivation
Removes free iron and enhances corrosion resistance for 300/400 series surgical stainless.
ASTM A967 / AMS 2700Parylene Coating
Biocompatible, pinhole-free conformal coating for implantable and sensitive electronic components.
USP Class VI / ISO 10993Passivation & Pickling
Chemical cleaning and oxide removal for stainless and titanium. Sterilization-ready surfaces.
ASTM A380 / A967Silicone Lubrication
Sterilization-compatible silicone dry-film for moving instrument joints and assembly interfaces.
USP Class VIChemical Passivation
Citric-acid or nitric-acid passivation per medical standards. Improves corrosion resistance and biocompatibility.
ASTM A967 Type 2Sterilization Validation
ETO, gamma and autoclave compatibility testing. Packaging validated per ISO 11607.
ISO 11135 / 11137Project Gallery
Representative recently delivered parts (published with customer authorization). Additional cases available under NDA.

Titanium Fastener & Bushing Set

Hydraulic System Fitting Assembly

Small Engine Integral Turbine Disk

Compressor Impeller — 5-Axis Finish

Gear & Impeller Full-Dimensional Check

Airframe Load-Bearing Housing
What Our Clients Say
Long-term feedback from medical device OEMs, startup teams and contract manufacturers.
"We transferred a complex titanium spinal implant casing from our previous supplier — the first article passed ISO 13485 review on the first try. Their DFM report helped us improve surface finish and reduce machining steps, and production ramped three weeks ahead of schedule."
"Rush response is what we value most. During a clinical-trial timeline crunch, they produced surgical instrument samples in 48 hours and delivered in 72 — with complete CMM and material reports. That kind of certainty is rare."
"Five years of partnership across two product lines. Their project portal makes our ISO 13485 surveillance audits nearly non-conformance-free."
Tibial Knee Implant Component:
From 6-Machining-Step Process to a Single 5-Axis Setup
The original process required six setups across three machines — tolerance stack-up risk, multiple handoffs and extended lead time. We switched to a Ti-6Al-4V ELI billet, machined the full articulating surface in one 5-axis setup, improving surface finish consistency to Ra 0.2 µm and eliminating all intermediate inspection steps.
Project passed ISO 13485 design review and has been in serial production for four years with zero batch rejects.
Discuss Your Similar ProjectFrequently Asked Questions
From a single R&D prototype to high-volume production runs. Small batches run on our flexible line; larger orders trigger dedicated tooling and cycle-time optimization with tiered pricing.
Standard prototypes: 3–7 business days. Titanium / superalloy complex parts: 7–15 days. Rush lane can compress to 48–72 hours for simple parts (subject to scheduling, complexity-dependent).
Yes. Every shipment includes a CMM full-dimensional report and raw material Mill Certificate by default. ISO 13485 DHF records, biocompatibility documentation (ISO 10993) and traceability reports can be prepared per customer requirements.
All customer data enters quotation only after an NDA is signed. Drawings stored on isolated project servers; departing employee access revoked immediately; projects destroyed or returned per customer request.
No hard MOQ. Single-piece prototypes are accepted, though unit price covers programming, fixturing and inspection costs. Larger quantities yield better per-unit pricing.
Critical features down to ±0.005 mm on 5-axis machined implant parts, ±0.003 mm on Swiss-type micro components, and Ra 0.1 µm on ground surfaces. Tolerance capability is feature- and material-dependent — confirmed at DFM stage.
