CNC Machining Titanium Services
At XHYE, we specialize in CNC machining titanium and its alloys, delivering precision-engineered components that combine exceptional strength-to-weight ratios, superior corrosion resistance, and outstanding biocompatibility. From critical aerospace structural parts and jet engine components to life-saving medical implants and high-performance marine hardware, our advanced multi-axis CNC capabilities and specialized titanium machining expertise ensure parts that meet the most rigorous performance and regulatory standards.
Get Instant Quote | ISO 9001:2015 Certified | Standard Tolerances: ±0.005″ (±0.13 mm) — Tighter Available | Lead Times from 5 Days | Max Part Size: 1200 × 800 × 600 mm
ISO
9001:2015 Certified
10+
Sheet metal materials
±0.01 mm
Tolerance achievable
5-day
Fast lead time
What Is Titanium Machining?
Titanium CNC machining is a precision subtractive manufacturing process that employs computer-controlled machine tools — primarily high-performance milling centers and lathes — to remove material from titanium stock (billets, plates, or forgings) to produce high-accuracy components with outstanding mechanical and corrosion-resistant properties.
Titanium is renowned for its exceptional strength-to-weight ratio (comparable to or exceeding many steels while being approximately 45% lighter), superior corrosion resistance in aggressive environments (seawater, acids, chlorides, and bodily fluids), excellent biocompatibility, and ability to withstand extreme temperatures. These properties make it indispensable in weight-critical and harsh-environment applications.
Key considerations in titanium machining:
- Low thermal conductivity causes heat to concentrate in the cutting zone and tool, requiring specialized high-pressure coolant, sharp tooling with advanced coatings (e.g., TiAlN or diamond-like), and optimized parameters to prevent work-hardening and tool failure.
- Titanium’s chemical reactivity can lead to built-up edge and galling, demanding precise control of speeds, feeds, and engagement.
- Excellent suitability for 3-axis, 4-axis, and full 5-axis simultaneous machining to produce complex, thin-walled, or intricate geometries in a single setup while maintaining structural integrity.
Our services encompass CNC milling (3/4/5-axis), CNC turning, drilling, tapping, threading, and integrated operations. We handle everything from rapid prototypes and functional test components to low- and medium-volume production runs with full material traceability, heat treatment coordination when required, and rigorous quality assurance.
Why Use Our Titanium Machining Service
No MOQ
One-off aluminum prototype part or large quantity parts. No matter the size of your order, we can handle it.
Certified Quality & Reliability
ISO 9001:2015 certified processes, rigorous in-process and final inspection, material traceability, and secure confidential handling of your designs and IP.
End-to-End Service
From instant quoting and material sourcing to finishing, assembly, and global shipping. One trusted partner for your entire project.
High-precision and tight tolerance
We routinely achieve standard tolerances of ±0.005″ (±0.13 mm), with precision machining capabilities down to ±0.002″ (±0.05 mm) or tighter on critical features. Full CMM inspection reports available.

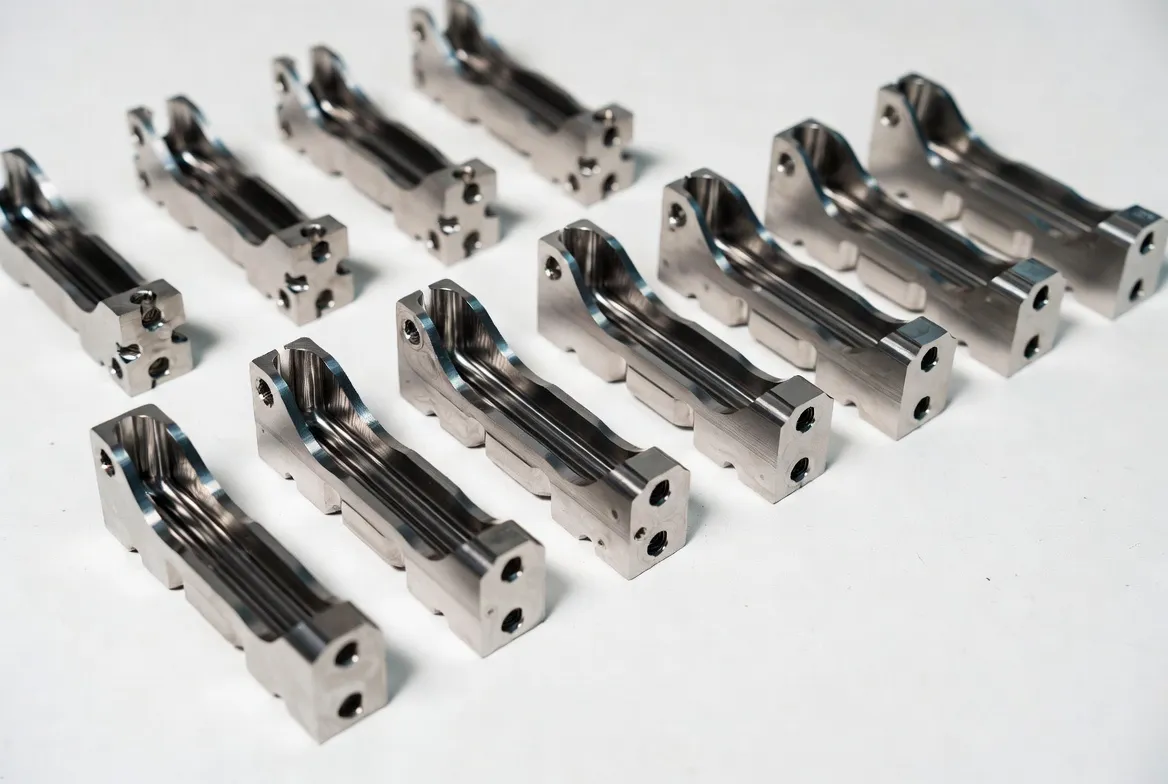

Products Made with Titanium CNC Machining
Grade 2 (Commercially Pure Titanium) offers an outstanding balance of excellent corrosion resistance, good ductility, and moderate strength, making it the preferred choice for applications where chemical inertness and formability are paramount. It performs exceptionally well in marine, chemical processing, and desalination environments as well as certain medical and architectural components. At XHYE, we apply optimized machining strategies — including sharp tooling and effective heat management — to produce precision parts with superior surface integrity while preserving the material’s inherent corrosion resistance and biocompatibility.
Grade 5 (Ti-6Al-4V) is the most widely used titanium alloy worldwide and the benchmark for high-performance structural applications. Its combination of high strength, good corrosion resistance, and relatively good machinability (when properly processed) makes it indispensable in aerospace airframes, jet engine components, high-stress fasteners, and performance automotive or motorsport parts. XHYE’s advanced 5-axis capabilities and titanium-specific process expertise enable us to machine complex geometries to tight tolerances while managing heat and tool wear, often delivering parts that meet stringent aerospace specifications (e.g., AMS 4911) with excellent repeatability.
Grade 23 (Ti-6Al-4V ELI) is the extra-low interstitial variant of Grade 5, engineered for superior ductility, fracture toughness, and biocompatibility. It is the material of choice for critical medical implants (such as orthopedic, dental, and spinal devices) and other applications requiring maximum reliability under cyclic loading or in the human body. XHYE maintains strict process controls and traceability when machining Grade 23, coordinating with subsequent surface treatments (such as anodizing or electropolishing) to produce implant-grade components that satisfy the highest medical standards (e.g., ASTM F136) while achieving the precision and surface quality essential for long-term clinical performance.
Grade 9 (Ti-3Al-2.5V) provides a favorable combination of moderate-to-high strength, good weldability, and excellent corrosion resistance, often used in aerospace tubing, hydraulic systems, and high-performance bicycle or sporting equipment frames. Its balanced properties make it suitable for applications requiring formability alongside strength. XHYE leverages specialized machining techniques to handle Grade 9 efficiently, producing precision tubular or structural components with consistent dimensional accuracy and surface finish suitable for both aerospace and high-end consumer performance products.
Other Materials
Outstanding corrosion resistance, strength, and cleanability. Ideal for medical devices, food-grade equipment, marine hardware.
Superior electrical and thermal conductivity, excellent machinability. Used for electrical connectors, heat exchangers, decorative hardware.
High strength and toughness. Often enhanced with heat treatment or coatings.
Lightweight with excellent corrosion resistance, good strength-to-weight ratio, and superior machinability. Used for aerospace components, heat sinks, automotive parts, and structural frames.
High impact resistance, good dimensional stability, and easy to machine or mold. Used for enclosures, automotive interiors, consumer products, and prototypes.
Excellent impact strength, high transparency, and good heat resistance. Used for protective covers, optical lenses, electronic housings, and safety equipment.
High mechanical strength, good wear resistance, and low friction. Used for gears, bearings, structural parts, and wear-resistant components.
