Automotive-Grade
Precision CNC Machining Services
XHYE Manufacturing delivers 5-axis CNC machining, rapid prototyping and production runs for EV, autonomous driving and automotive automation programs — with critical feature tolerances down to ±0.01 mm, backed by IATF 16949 and ISO 9001 certified quality systems.
Custom Automotive Parts,
From Prototype to SOP
From one-off prototypes to production runs — EV battery housings, LiDAR and radar brackets, motor end shields, sensor mounts and chassis components. Our DFM engineers review every drawing to optimize for high-volume manufacturability and reduce per-unit cost.
- STP / STEP / IGES / SolidWorks / AutoCAD drawing formats accepted
- Prototypes delivered in 3–7 days; production runs scheduled to your cadence
- First Article Inspection (FAI), Material Certificates (COC) and dimensional reports included
- PPAP Level 3 and IATF 16949 documentation packages supported
- Dedicated fast-track lane for low-volume, rush and ECN orders
Why Automotive Engineers Choose XHYE
Automotive programs demand zero defects and consistent scalability. We build IATF 16949 process discipline, SPC control and on-time delivery into every production run.
IATF 16949 Certified
Automotive-specific QMS compliant with IATF 16949. SPC control plans, PPAP documentation and annual customer-specific requirements managed.
Scalable Production
From 50-piece prototype to 100,000-piece annual volume on shared flexible lines. Dedicated fixturing and cycle-time optimization for series production.
SPC & Cpk Control
Critical features monitored via SPC with Cpk ≥ 1.67 targets. Daily capability reports delivered to customer portal.
98.8% On-Time Delivery
On-time delivery rate above 98.8% (rolling 3-year statistic). Rush orders responded within 24 hours.
Our Unique Advantages
More than a machine shop — your engineering partner in the supply chain.
DFM Engineering Support
Quotations include manufacturability analysis: wall thickness, tool reach, fixturing recommendations. Catch issues before production.
Real-Time Project Tracking
Track work order status, inspection reports and shipping via dedicated customer portal. Automated notifications at key milestones.
One-Stop Special Processes
Anodizing, e-coat readiness, powder coating and heat treatment coordinated with IATF-certified subcontractors — all final-inspected by us.
CMM & Blue-Light Inspection
Full-dimensional CMM, optical comparator and vision system for tight-tolerance automotive features. PPAP-ready inspection reports with every shipment.
Flexible Production Capacity
From 1 prototype to high-volume production on shared lines. Modular tooling avoids the "small batch = expensive" trap.
IP & Design Protection
Factory-wide NDA system. Drawings stored on isolated servers; departing employee access revoked immediately; IP audits supported.
5-Stage Quality Control
View Full Quality ProcessEvery part passes through a documented inspection chain aligned with IATF 16949 — no shortcuts, no exceptions.

Incoming Inspection
Raw material verified against Mill Certificate; lot number and material cert logged per IATF 16949.

First Article (FAI)
Full-dimensional FAI before production release; PPAP submission package prepared per customer requirements.

In-Process Patrol
Periodic SPC sampling during machining; Cpk charts for safety-critical and tolerance-critical features.

Final Inspection
CMM full-dimensional check + surface finish verification per drawing.

Outgoing Audit
Documentation review, packaging verification and traceability check.
Automotive Manufacturing Processes
From additive manufacturing to precision machining, forming and molding — each process validated for automotive durability, high-volume efficiency and cost targets.
3D Printing
Produce prototype and low-volume jigs, fixtures and tooling directly from digital models — ideal for topology-optimized lightweight structures and complex internal cooling channels.
CNC Machining
3-axis, 5-axis and Swiss-type centers machine aluminum, steel and engineering plastics from prototype to production — ideal for sensor housings, motor components and precision automotive parts.
Sheet Metal Fabrication
Laser cutting, CNC bending, stamping and MIG/TIG welding produce brackets, enclosures, chassis components and battery trays — ideal for structural automotive parts requiring strength with minimal weight.
Injection Molding
Engineering-grade injection molding with aluminum soft tooling for bridge production — ideal for sensor housings, connector components and interior trim before committing to hardened production tooling.
Automotive-Grade Materials
Automotive-grade materials stocked in-house, every batch supplied with original Mill Certificates and lot-number traceability per IATF 16949.
| Category | Common Grades | Typical Applications | Process Notes |
|---|---|---|---|

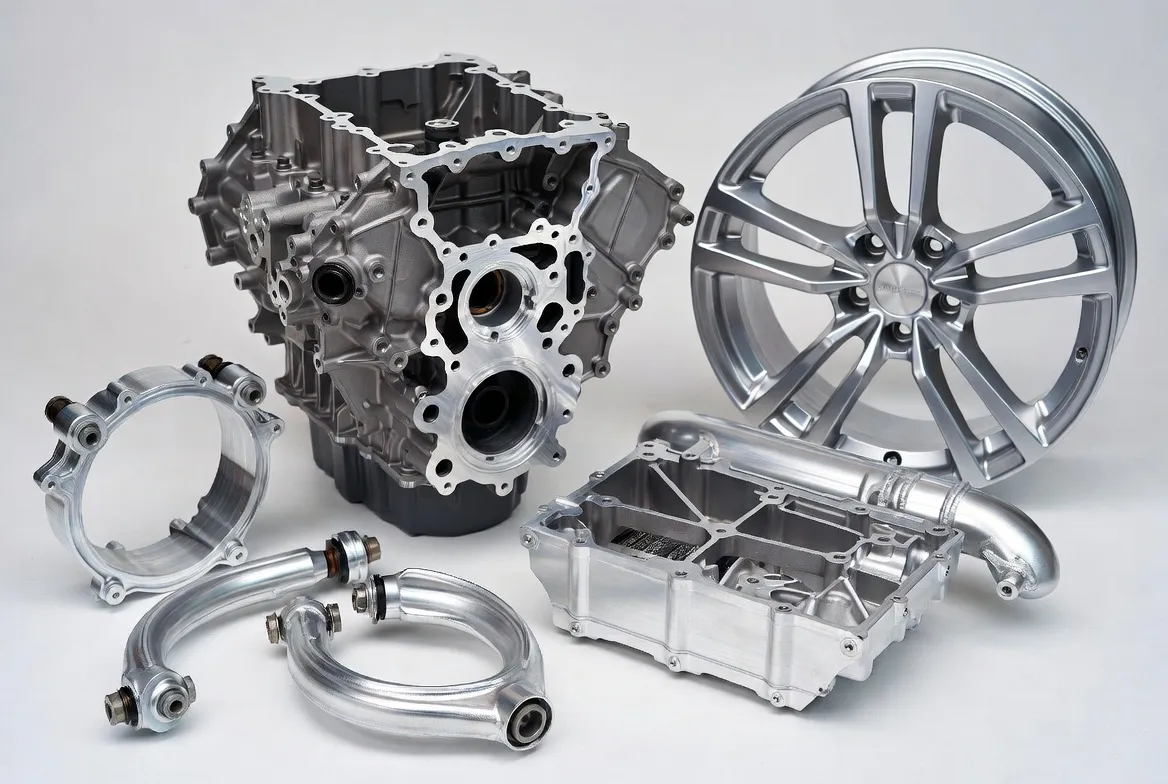

| Aluminum EV Structural |
6061-T6, 7075-T6, Al6061, ADC12 | EV battery housings, motor end shields, sensor brackets, chassis components, heat sinks | High-speed machining, thin-wall vibration control, anodizing/e-coat ready |

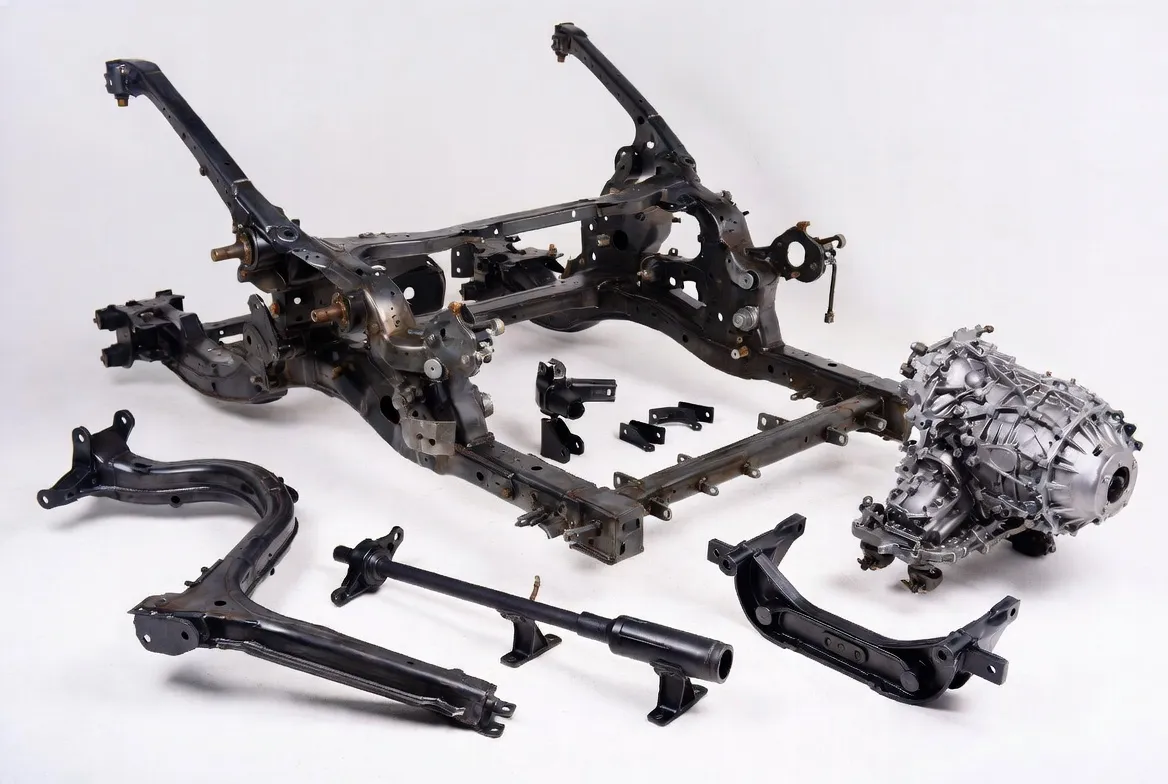

| Steel Shaft / Gear |
4140, 4340, 1045, 1215 free-machining | Shafts, gears, transmission components, fasteners, suspension parts | Free-machining grades for high volume, heat treatment available |
| Stainless Steel Corrosion Resist |
304, 316L, 17-4PH, 420 | Sensor housings, exhaust components, fasteners, corrosion-resistant parts | Passivation available, burr control, demagnetization |

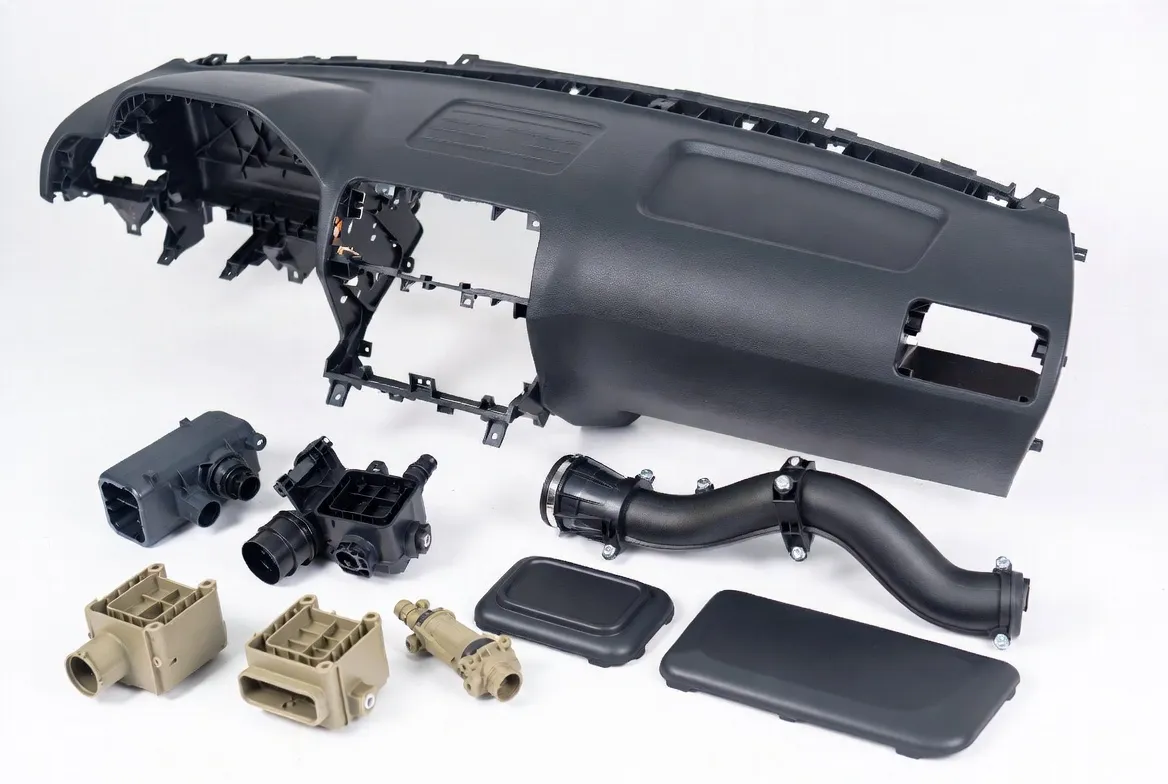

| Engineering Plastics Polymers |
PEEK, PPS, PA66, Ultem (PEI), Acetal | Insulators, connector housings, bushings, wear parts, sensor components | Dimensional stability, low-wear, chemical-resistant grades available |

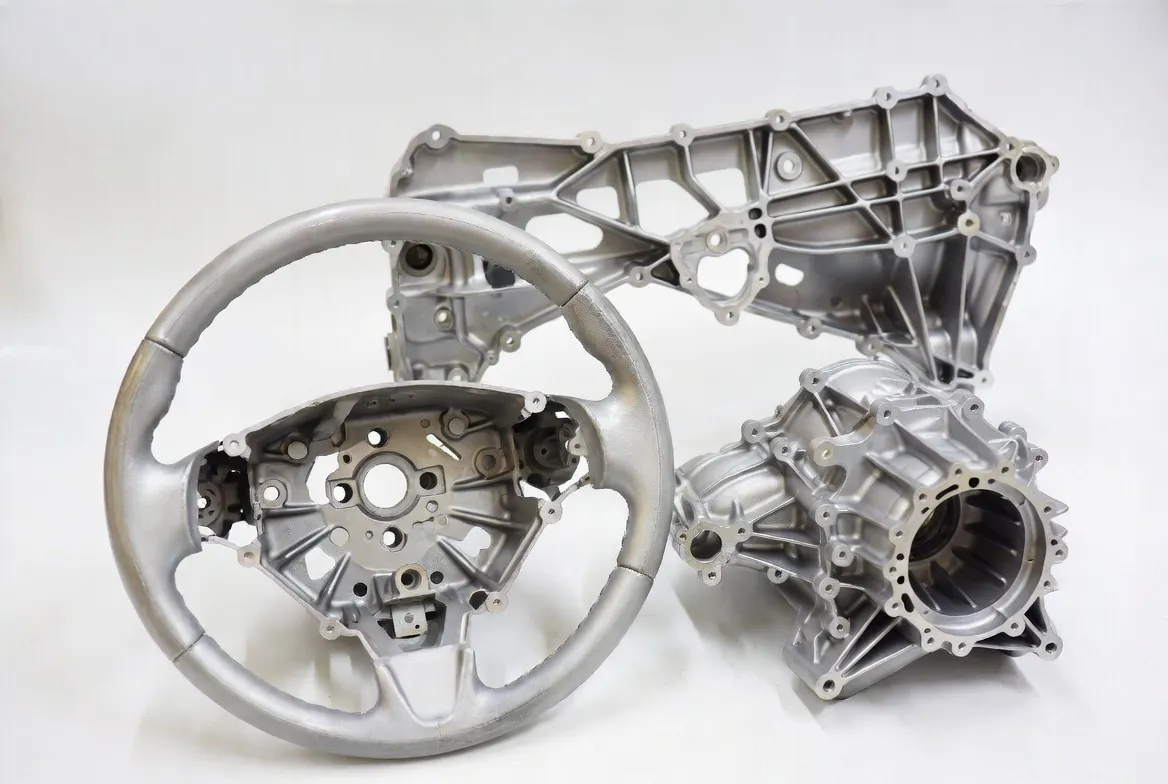

| Mg / Copper Lightweight / Conductive |
AZ91D magnesium, C11000 copper, brass | Lightweight housings, electrical contacts, heat sinks, shielding components | Magnesium: anti-corrosion coating; copper: high thermal/electrical conductivity |
Surface Treatment Options
All surface treatments performed by certified subcontractors. We coordinate the process chain and perform final inspection.
Hard Anodizing
For aluminum wear and corrosion components. Coating 25–75 µm, hardness up to HV 400, dyeable to OEM specs.
MIL-A-8625 Type IIIChromate Conversion
Pre-paint / e-coat treatment for aluminum and zinc. Conductive, corrosion-resistant, improved paint adhesion.
ASTM D1730Stainless Passivation
Removes free iron and improves corrosion resistance for 300/400 series stainless automotive parts.
ASTM A967 / QQ-P-35E-Coat Primer Ready
Aluminum and steel parts prepared for electrophoretic deposition primer. Consistent surface for OEM paint lines.
ASTM D3359Powder Coating
Durable, chip-resistant finish for under-hood and chassis components. Wide color range, corrosion protection.
ASTM D7091Zinc / Zn-Ni Plating
Corrosion protection for steel fasteners and chassis parts. Hydrogen embrittlement controlled with bake records.
ASTM B633 / B841Dry Film Lubricant
MoS₂ / PTFE coatings for bearings, sliding surfaces and assembly interfaces. Reduces friction and wear.
MIL-PRF-46010Leak & Torque Testing
Helium leak detection for cooling plates, torque verification for fasteners, pressure testing per customer spec.
ISO 20485 / OEM SpecProject Gallery
Representative recently delivered parts (published with customer authorization). Additional cases available under NDA.

Titanium Fastener & Bushing Set

Hydraulic System Fitting Assembly

Small Engine Integral Turbine Disk

Compressor Impeller — 5-Axis Finish

Gear & Impeller Full-Dimensional Check

Airframe Load-Bearing Housing
What Our Clients Say
Long-term feedback from automotive OEMs, EV startups and Tier-1 suppliers.
"We transferred a complex aluminum sensor bracket from our previous supplier — the first article passed PPAP Level 3 on the first try. Their DFM report helped us reduce machining time by 22%, and production ramped two weeks ahead of schedule."
"Rush response is what we value most. During an EV program timeline crunch, they produced prototype motor housing samples in 48 hours and delivered in 72 — with complete CMM and material reports. That kind of certainty is rare."
"Five years of partnership across three vehicle programs. Their project portal makes our IATF 16949 surveillance audits nearly non-conformance-free."
LiDAR Sensor Housing:
From 8-Piece Assembly to a Single 5-Axis Machined Enclosure
The original design consisted of 8 stamped and machined pieces bolted together — poor optical alignment, multiple leak paths, long assembly time. We switched to a 6061-T6 billet, machined the integral housing in one 5-axis setup, reducing optical alignment error by 90% and eliminating all sealing joints.
Project passed PPAP Level 3 and IATF 16949 audit, and has been in serial production for four years with zero field returns.
Discuss Your Similar ProjectFrequently Asked Questions
From a single R&D prototype to high-volume production runs. Small batches run on our flexible line; larger orders trigger dedicated tooling and cycle-time optimization with tiered pricing.
Prototype: 3–7 business days. First article / PPAP: 2–3 weeks. Full production ramp typically 4–8 weeks depending on volume and fixturing requirements.
Yes. Every shipment includes a CMM full-dimensional report and raw material Mill Certificate by default. PPAP Level 1–3, IMDS submissions and IATF 16949 documentation can be prepared per customer requirements.
All customer data enters quotation only after an NDA is signed. Drawings stored on isolated project servers; departing employee access revoked immediately; projects destroyed or returned per customer request.
No hard MOQ. Single-piece prototypes are accepted, though unit price covers programming, fixturing and inspection costs. Larger quantities yield better per-unit pricing.
Critical features down to ±0.01 mm on 5-axis machined parts, ±0.003 mm on Swiss-type micro components, and ±0.002 mm on precision-ground surfaces. Tolerance capability is feature- and material-dependent — confirmed at DFM stage.
